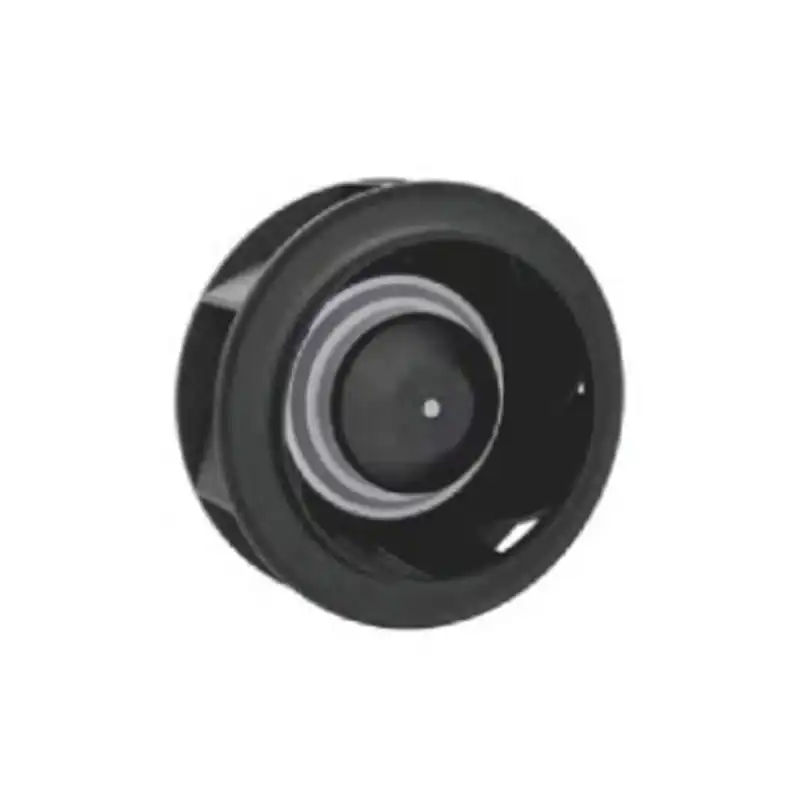

When installing EC Backward Tilting Centrifugal Fans, what factors need special attention?

1. Fan selection and size
Fan selection is the most basic and crucial step in the installation process. Choosing the right fan can not only improve the operating efficiency of the system, but also avoid unnecessary energy waste. EC Backward Tilting Centrifugal Fans excel in energy efficiency and operating stability, but different application scenarios have different requirements for fans, and they need to be selected based on the following factors:

Flow and pressure requirements: Select the appropriate fan model based on the required air volume and pressure calculation. The fan's performance curve should match the system's requirements to avoid selecting a fan that is too large or too small.
Fan speed and adjustment range: EC fans usually have a wider adjustment range, and the adjustment requirements of the system under different load conditions need to be considered to ensure that the fan's speed range can meet the actual use.
Power and efficiency: EC fans have high energy efficiency, but the power and efficiency of different models are also different. The most economical and efficient fan should be selected under load.
2. Installation location and space requirements
The installation location of the fan directly affects its working efficiency and operating life. When installing EC Backward Tilting Centrifugal Fans, special attention should be paid to the following points:

Ventilation and heat dissipation: The installation location should ensure that there is enough ventilation space around the fan to avoid heat accumulation. Fans usually generate a certain amount of heat, especially when they are running for a long time, it is necessary to ensure that they have a good heat dissipation environment. Avoid installing the fan in places with poor air circulation.
Avoid vibration interference: The fan will generate a certain amount of vibration when it is running. During installation, ensure that there are sufficient isolation measures between the fan and the building structure to reduce the transmission of vibration to other equipment or buildings, and avoid unnecessary noise and structural damage. A common practice is to use shock-absorbing pads or shock-absorbing brackets.
Space layout: The fan needs to be installed in a location that is convenient for maintenance, and sufficient space should also be left for cleaning and maintenance. The height and width of the installation space need to be determined according to the size of the fan to ensure that the fan can be installed smoothly and maintain the best working condition.
3. Pipeline and airflow design
The design of the fan's pipeline system directly affects the flow efficiency of the airflow. During installation, special attention should be paid to the layout, size and connection method of the pipeline:

Matching the pipeline size with the fan: The connection between the fan outlet and the pipeline needs to ensure good sealing to avoid airflow leakage affecting the performance of the fan. The diameter of the pipeline should be selected according to the inlet and outlet sizes of the fan to avoid excessively large pipelines causing too low fan load or too small pipelines causing too high fan load.
Elbows and joints in the pipeline: Try to reduce the number of elbows and joints in the pipeline, because too many elbows will increase the resistance of the airflow and affect the working efficiency of the fan. If elbows are required, the appropriate bending radius should be selected to reduce the loss of air flow.
Airflow stability: After the fan is installed, the pipeline should try to avoid the formation of unstable airflow areas to prevent the local air flow rate from being too fast or too slow, affecting the airflow distribution of the entire system and the operating efficiency of the fan.
4. Electrical connection and commissioning
The electrical control system of EC Backward Tilting Centrifugal Fans needs to match the design and working mode of the fan itself. Correct electrical connection and commissioning are essential:

Power supply requirements: EC fans usually have more sophisticated electrical control systems, and the voltage and frequency of the power supply must meet the technical requirements of the fan. During installation, the stability of the power supply must be checked to ensure that the power supply meets the load requirements of the fan.

Grounding and protection: The electrical part of the fan needs to be well grounded to prevent electrical failures. For EC fans, special attention should also be paid to electrical protection measures such as overload protection and short-circuit protection.

Speed ​​control: EC fans are generally speed-controlled by frequency converters. During the installation process, it is necessary to confirm the compatibility of the frequency converter with the fan and connect it to the electrical control system as required. In addition, the speed control function needs to be fully debugged to ensure that it can work properly under various loads.

5. Noise and vibration control
EC Backward Tilting Centrifugal Fans have low working noise, but some vibration and noise may still be generated, especially under high load or fan failure. Some measures should be taken during the installation process to reduce the spread of noise and vibration:

Shock-absorbing support: Shock-absorbing support devices such as rubber pads or spring brackets should be used when installing the fan to reduce direct contact between the fan and the ground or wall and reduce the spread of vibration.
Sound insulation measures: If necessary, consider installing sound insulation panels or mufflers to reduce the impact of noise on the surrounding environment. Especially in residential areas or industrial environments where low noise is required, noise control is very critical.
6. Maintenance and care
In order to ensure that EC Backward Tilting Centrifugal Fans can operate efficiently for a long time, regular maintenance and care are essential. During the installation stage, the following maintenance factors need to be considered:

Easy to clean: The fan should be installed in an easy-to-clean location to avoid dust and dirt accumulation, which will affect the efficiency of the fan. Especially in environments with heavy air pollution, the air inlet and outlet of the fan need to be cleaned regularly.
Inspection and replacement of parts: Regularly inspect the various parts of the fan, including motors, bearings, fan blades, etc., to ensure that they are in good working condition. If necessary, replace aging or damaged parts to prevent failure.
Lubrication and adjustment: For parts that need lubrication, regularly check and add appropriate amount of lubricating oil to ensure that the fan rotates smoothly. At the same time, it is also necessary to regularly perform vibration detection on the fan to confirm whether it is operating normally.
